EQUIPMENT & SYSTEMS

Extreme flatness of parts to within .001" or .002" in most cases is readily achieved with the CWP precision parts straighteners. Small parts as thin as .010" can be flattened on our precision small parts straighteners, while larger fine blanked parts, clutch plates and laser burnt parts can be flattened on our larger precision parts straighteners or B&K levelers. With the upper straightener rolls set in one bank, straightener roll penetration is set by simple 2-point adjustment. Wider precision parts straighteners have backed up rolls to prevent roll deflection while maintaining their advantageous working diameters. Seventeen straightening rolls and two pinch/feed rolls are all powered to carry the parts all the way through without distortion or buckling.


8in. small parts straightener with backed up rolls, Dial indicators and slope top cabinet

8” small parts straightener with backed up rolls, Dial indicators and slope top cabinet

17 Roll Precision Parts Straightener with automatic lubrication

17 Roll Precision Parts Straightener with automatic lubrication

17 Roll Precision Parts Straightener with automatic lubrication

17 roll Precision Parts straightener with guards removed

17 Roll Precision Parts straightener with guards removed. This unit features a high lift head arangement and chrome rolls. This design allows the user to process critical finish parts more effectively.


20” wide- 17 roll Precision Parts straightener with guards removed.

20” wide- 17 roll Precision Parts straightener input

20” wide- 17 roll Precision Parts straightener output


Material In

Material Out

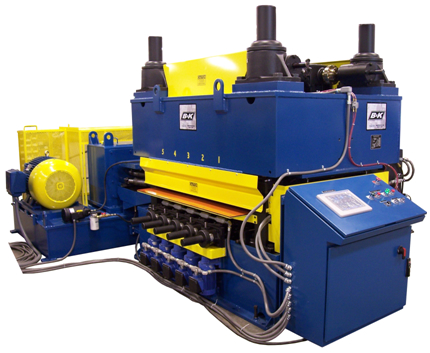

B&K leveler designed to straighten and level parts up to .312in. thick
