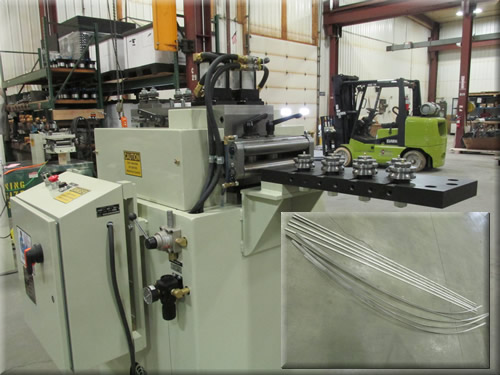

Precision Straighteners Series C

Individual Roll Adjustment. Standard 7 Straightening Rolls. 9 or 11 Rolls available as an option.

• Modulating drive system with laser control regulates output speed for smooth delivery of material
• Individual upper roll straightening adjustment to enable leverage for roll pressure and maintain parallelism
• Hardened and ground rolls on close centers
• Split gear train for efficient distribution of power
• Cluster gearing on pinch rolls ensures proper mesh through thickness adjustments
• Air lift entry pinch rolls
• Spring set exit pinch rolls require no operator intervention
• 2-Year Warranty

Specifications - Inches (mm)

(HD = Heavy Duty)

Model	Max. Stock Width	Capacity Mild Steel Min./Max.	Straightening Roll Dia.	Center Distances	Pinch Roll Dia.
6C	6 (152.400)	.021/.178 (.533/4.750)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
6HDC	6 (152.400)	.021/.312 (.533/7.925)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
12C	12 (304.800)	.021/.187 (.533/4.750)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
12HDC	12 (304.800)	.021/.250 (.533/6.350)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
18C	18 (457.200)	.021/.187 (.533/4.750)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
24C	24 (609.600)	.021/.187 (.533/4.750)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
30C	30 (762.000)	.021/.125 (.533/3.175)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
36C	36 (914.400)	.021/.093 (.533/2.362)	2.75 (69.850)	3.25 (82.55)	2 .75 (69.850)
