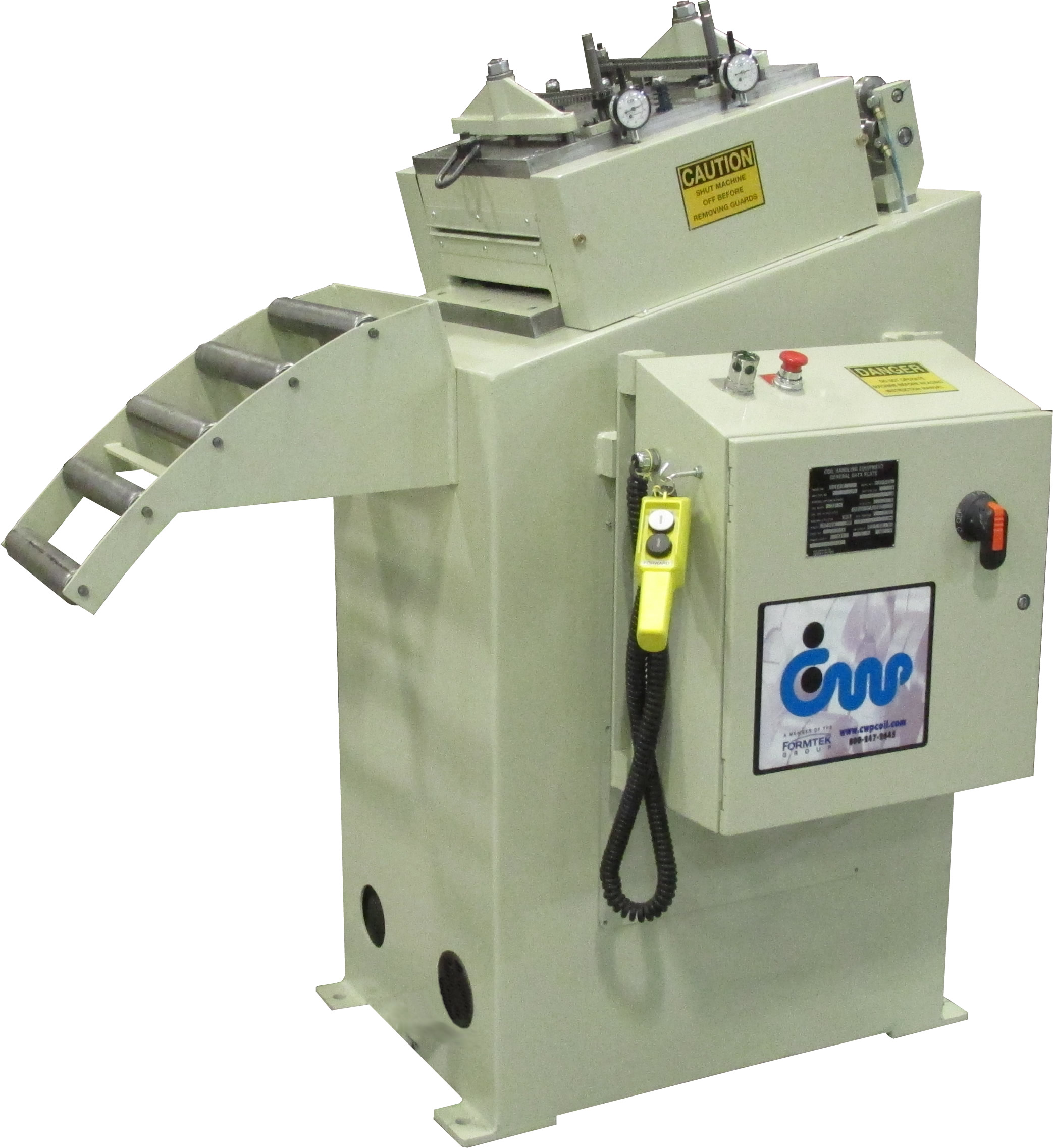

Precision Straighteners Series B

Single Bank Roll Adjustment. Standard 7 Straightening Rolls. Optional 9, 11 or 17 rolls.

The CWP^© "B" series stock straightener is ideal for removing coil set (coil stock curvature) at controlled speeds. Improved feeding effiiciency and accuracy can be expedited once the precision coil stock straightener is incorporated into your press feed line.

• Modulating drive system with laser control regulates output speed for smooth delivery of material
• Bank roll mounting for simple, two-point adjustment
• Hardened and ground rolls on close centers
• Split gear train for efficient distribution of power
• Cluster gearing on pinch rolls ensures proper mesh through thickness adjustments
• 2-Year Warranty

Specifications - Inches (mm)

Model	Max. Stock Width	Capacity Mild Steel Min./Max.	Straightening Roll Dia.	Center Distances	Pinch Roll Dia.
6B	6 (152.400)	.018/.125 (.457/3.175)	2 (50.800)	2.5 (63.5)	2 (50.800)
12B	12 (304.800)	.018/.125 (.457/3.175)	2 (50.800)	2.5 (63.5)	2 (50.800)
18B	18 (457.200)	.018/.093 (.457/2.362)	2 (50.800)	2.5 (63.5)	2 (50.800)
24B	24 (609.600)	.018/.078 (.457/1.981)	2 (50.800)	2.5 (63.5)	2 (50.800)
30B	30 (762.00)	.018/.048 (.457/1.219)	2 (50.800)	2.5 (63.5)	2 (50.800)

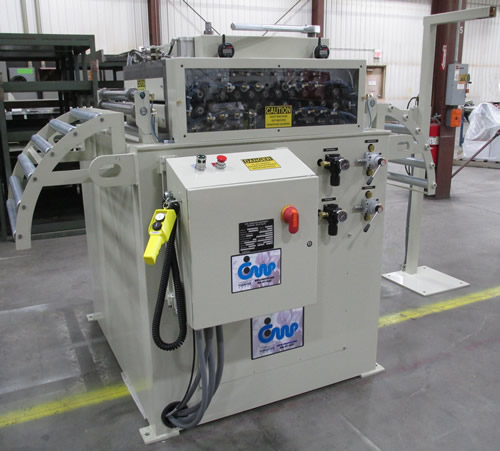

Precision coil straightener 24B Series Backed-up

17 roll precision coil stock straightener with backed-up rollers allows this machine to achieve outstanding flattness on a large range of stock widths and thicknesses.

Precision stock straightener - 18in. press feed line
