B&K© Precision Levelers
|
B&K© PRECISION LEVELERS
Designed for greater leveling control |
|
 |

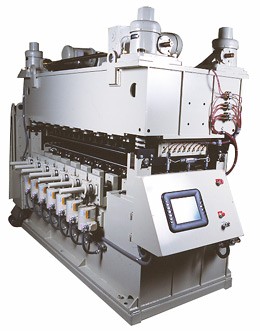

B&K© backed-up roller levelers are designed
for precision coil strip flatness and shape correction. Advanced
engineering makes this leveler a "one-operator" piece of equipment
ideal for sheet leveling, parts leveling, cut-to-length lines
and other applications. B&K© levelers are the perfect solution
to problems posed by coil set, cross bow, wavy edge and center
buckled material. B&K© Precision Levelers, with standard 4-high and optional 5- or 6-high roll arrangements, compensate for "draw" in roll forming applications and eliminate "dished" stampings common in stamping processes. The result is dead-flat panel or strip for increased productivity and part quality. Download the PDF Brochure  B&K© Levelers [1.13 MB]
View additional Leveler images |
Features:
|
|
Optional Features:
|
 |
Model 1.25BK Specifications
Roll Diameter: 1.25" • No. of Rolls: 19
| Material Width: | 24 | 36 | 48 | 60 | 72 |
|---|---|---|---|---|---|
| Back-ups: | 3 | 3 | 5 | 5 | 7 |
| Adjustable: | 1 | 1 | 3 | 3 | 5 |
| Max. Thickness: | .078 | .078 | .060 | .054 | .048 |
| Min. Thickness: | .010 | .010 | .010 | .010 | .010 |
Model 1.5BK Specifications
Roll Diameter: 1.50" • No. of Rolls: 19
| Material Width: | 36 | 48 | 60 | 72 | 84 |
|---|---|---|---|---|---|
| Back-ups: | 3 | 5 | 5 | 7 | 9 |
| Adjustable: | 1 | 3 | 3 | 5 | 6 |
| Max. Thickness: | .104 | .093 | .078 | .078 | .078 |
| Min. Thickness: | .015 | .015 | .015 | .015 | .015 |
Model 1.75BK Specifications
Roll Diameter: 1.75" • No. of Rolls: 19
| Material Width: | 36 | 48 | 60 | 72 | 84 | 96 |
|---|---|---|---|---|---|---|
| Back-ups: | 3 | 5 | 5 | 7 | 9 | 9 |
| Adjustable: | 1 | 3 | 3 | 5 | 7 | 7 |
| Max. Thickness: | .164 | .150 | .140 | .140 | .125 | .125 |
| Min. Thickness: | .021 | .021 | .021 | .021 | .021 | .021 |
Model 2.25BK Specifications
Roll Diameter: 2.25" • No. of Rolls: 17
| Material Width: | 36 | 48 | 60 | 72 | 84 | 96 |
|---|---|---|---|---|---|---|
| Back-ups: | 3 | 5 | 5 | 7 | 9 | 9 |
| Adjustable: | 1 | 3 | 3 | 5 | 7 | 7 |
| Max. Thickness: | .194 | .187 | .180 | .164 | .150 | .140 |
| Min. Thickness: | .036 | .036 | .036 | .036 | .036 | .036 |
Model 3BK Specifications
Roll Diameter: 3.00" • No. of Rolls: 17
| Material Width: | 48 | 60 | 72 | 84 | 96 |
|---|---|---|---|---|---|
| Back-ups: | 5 | 5 | 7 | 9 | 9 |
| Adjustable: | 3 | 3 | 5 | 7 | 7 |
| Max. Thickness: | .250 | .250 | .240 | .225 | .209 |
| Min. Thickness: | .048 | .048 | .048 | .048 | .048 |
Model 3.50BK Specifications
Roll Diameter: 3.50" • No. of Rolls: 17
| Material Width: | 48 | 60 | 72 | 84 | 96 |
|---|---|---|---|---|---|
| Back-ups: | 5 | 5 | 7 | 9 | 9 |
| Adjustable: | 3 | 3 | 5 | 7 | 7 |
| Max. Thickness: | .312 | .312 | .312 | .281 | .281 |
| Min. Thickness: | .067 | .067 | .067 | .067 | .067 |
