Coil Reels - Series 2, 2.5, 4, 4.5

Series 2, 2.5, 4, 4.5

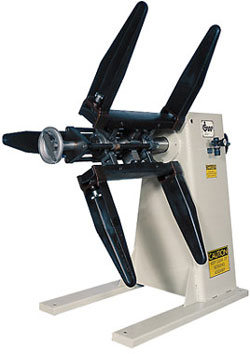

	CAPACITY : 1,600 – 10,000 LBS. MAX. WIDTHS : 18", 24", 30", 36" MAX. O.D. : 60" (72" O.D. Optional) • Broad fabricated expansion arm mandrel. Drum segment mandrel (optional) • Link style expansion mechanism • Manual expansion by foldaway crank. Hydraulic expansion (optional) • Air Brakes (standard) • Motorized units: Dynamic braking resistors, loop arm or non-contact laser loop control sensor, low volt probe controls (double), other controls (optional), single or three-phase motors.
Specifications

SERIES	Models Single	Models Double	Max. Weight	Max. Stock Width	Max. Coil O.D.	Expansion Range	Max. Speed (FPM)
2*	2R-18	2RD-18	1,600	18”	48”	11.5 – 17.5”	100
2.5	2.5R-12	2.5RD-12	3,000	12”	52”	15.5 – 20.5”	100
4	4R-18	4RD-18	8,000	18”	60”	13 – 17”	100
	4R-24	4RD-24	6,000	24”	60”	13 – 17”	100
	4R-36	4RD-36	5,000	36”	60”	13 – 17”	100
4.5	4.5R-24	4.5RD-24	10,000	24”	60”	14 – 18”	100
	4.5R-30	4.5RD-30	10,000	30”	60”	14 – 18”	100
	4.5R-36	4.5RD-36	8,000	36”	60”	14 – 18”	100

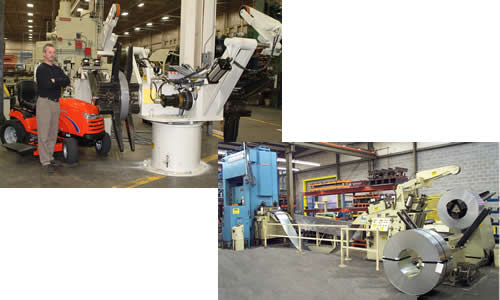

Top - Double end coil reel in production, Press feed line with 10,000 lb. coil reel - bottom

Above left, an 8,000 lb. double end coil reel in production. The coil reel is equiped with powered indexing, powered expansion, hold down arms and powered thread-up drives. Above right, is a 10,000 lb. coil reel incorporated into a 24" wide press feed line.
