Coil Reels - Series 7, 8

Series 7, 8

CAPACITY :
20,000 – 40,000 LBS.

MAX. WIDTHS :
36", 48", 60" & 72"

MAX. O.D. : 72"

Specifications

SERIES	Single Models	Double Models	Max. Weight	Max. Stock Width	Max. Coil O.D.	Expansion Range	Max. Speed (FPM)
7	7R-36	7RD-36	35,000	36”	72”	19.5 – 24.5”	150
	7R-48	7RD-48	30,000	48”	72”	19.5 – 24.5”	150
	7R-60	7RD-60	25,000	60”	72”	19.5 – 24.5”	150
	7R-72	7RD-72	20,000	72”	72”	19.5 – 24.5”	150
8	8R-48	8RD-48	40,000	48”	72”	19.5 – 24.5”	150
	8R-60	8RD-60	35,000	60”	72”	19.5 – 24.5”	150
	8R-72	8RD-72	30,000	72”	72”	19.5 – 24.5”	150

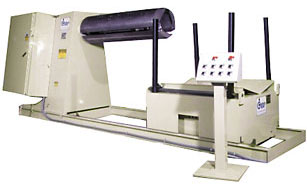

Cut to length line with 30,000 lb. 8R coil reel, precision straghtener and 4 roll servo feed unit.
