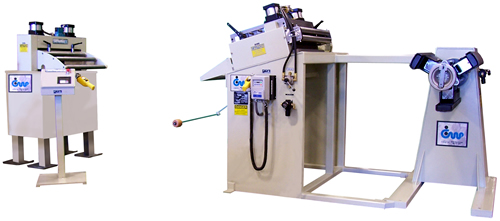

MODEL COIL-PAK® (SMX24SE & 24CRS PACKAGE) also available in 30"

MODEL COIL-PAK (SMX24SE & 24CRS PACKAGE)

SPECIFICATIONS:

Maximum stock width 24"
Capacity in mild steel at full width* 0.125"
Feed roll accuracy+/- .002" +/- .002"
Maximum feed length 999.999"
Roll Size 2.75"diameter x 24.5" wide
Passline height from baseplate 9-9/16"
Straightening roll diameter (7-3 rolls over 4 rolls)......2.75"
Center distances 3.25"
Pinch roll diameter 2.75"
Coil weight capacity 6,500 lbs.
Maximum coil O.D 60"
Mandrel expansion range 13" to 17"
Voltage 220 Volt, 1 Phase, 60 Cycle

PRODUCTION RATES: Based on 180° of Press Cycle

Feed Length
Strokes per Minute
3"
150
6"
100
8"
75
12"
50
18"
34
24"
25



*Note: Production rates are based on full width, full thickness rating of the feed. Consult factory based on actual application requirements. Consult factory for speeds in excess of 150 strokes per minute where roll lift is required.

For more information about new MODEL COIL-PAK® (SMX24SE & 24CRS PACKAGES) contact CWP at 1-800-247-2645.
