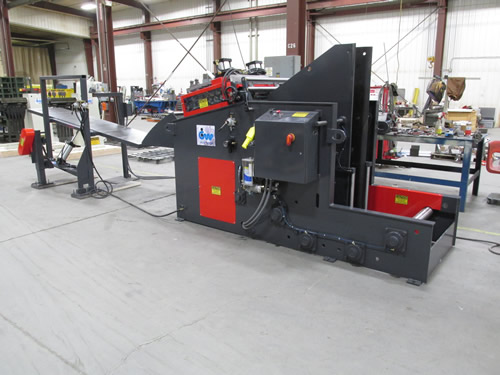

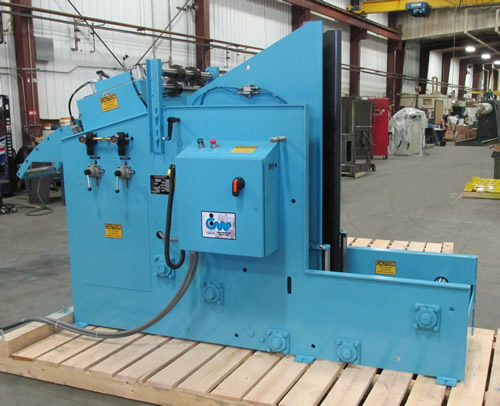

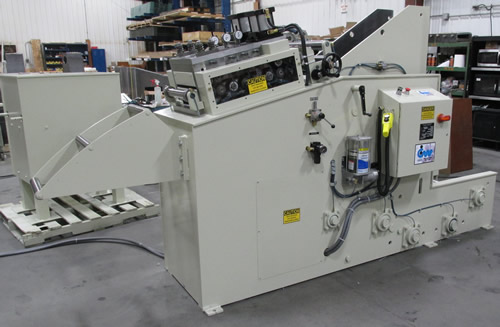

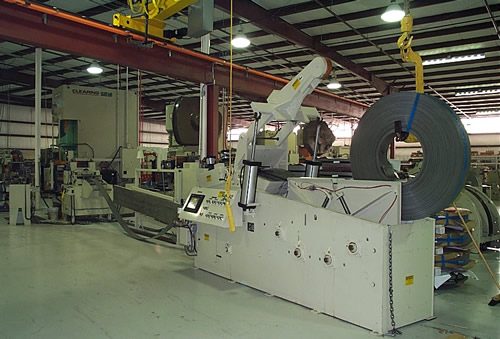

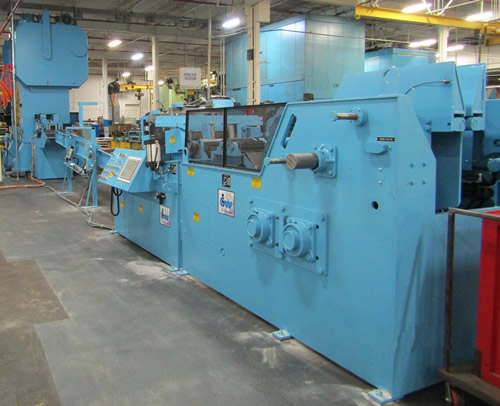

Combination Cradle Straightener

Cradle Straightener

Coil Cradle-Straighteners by CWP^© safely payout and straighten coils of material. Uncoiling and straightening operations are combined in an integrally mounted unit with synchronized payout. The four cradle rolls, four straightener pinch rolls and lower straightening rolls are driven by a variable speed drive with laser loop control. All rolls are Hardened, Ground, and set in anti-friction bearings. Coil cradle confining plates with flared lead edge are independently adjusted. Angular straightener head mounting accepts material readily from the coil and delivers it into a gradual slack loop. The “L” shaped steel weldment cabinet provides highly engineered loading access and material flow.

Options include: 10,000 and 12,000 LB units, coil confining plate guide rolls, Automatic central lubrication, digital roll position readouts and hands free threading accessories.
