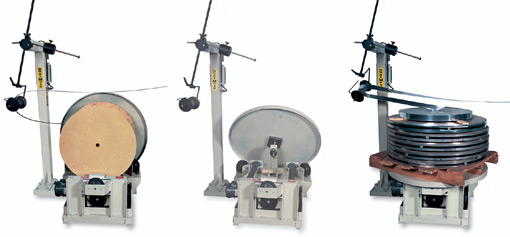

Model DualMate® Decoiler
|
The Model DualMate© pallet decoiler provides outstanding versatility for decoiling traverse wound material and can then be easily converted to a pallet decoiler. This model is widely used by electronic stampers. |
Features:
|
Model DualMate© Specifications |
Capacity: | 3,000 lbs. (traverse); 3,000 lbs.and 5,000 lbs. (pallet decoiler) |
---|---|
Platform Size: | 42" - 48" Dia. |
Line Speed: | 125 FPM (traverse); 125 FPM (pallet decoiler) |
Control: | DC SCR |
Voltage: | 110 V |
Material Gauge Range: | .005" - .040" (traverse); .005" - .065" (pallet decoiler) |
Max. Coil O.D.: | 48" |
