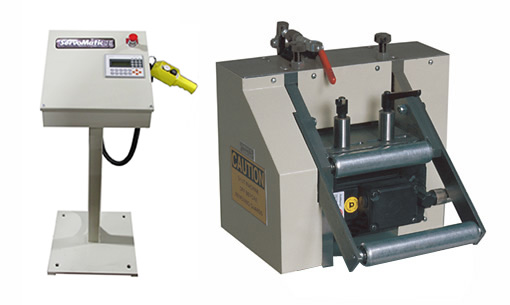

ServoMatic^© LT III - Servo Roll Feed


The ServoMatic^© LT III provides a low-cost alternative to the high maintenance and slow set-up of air operated and mechanically driven feeds. Delivers fast set-ups and greater accuracy at speeds up to 600 SPM. Complete with operator-oriented control panel featuring tactile membrane keypad and numeric display.

Standard Features: • 500-job memory • Remote jog • Batch count, positive/negative feed progressions • Jog-to-length and in-motion control • Mechanical roll lift standard • Inch/Metric readout • Two-Year Warranty Optional: • Spanish language display • Programmable Pattern • Press Mounting Bracket • High Speed Pneumatic Roll Lift • High Speed Drive Packages Specifications:

Servo Feed	Model	Width	Thickness	Max. Feed Length
ServoMatic^© LT III	SM-LTIII	4" (101.600mm)	.062" (1.575mm)	999.999" (25.39m)

High Speed Servofeed

High Speed ServoMatic^© LT III ServoRoll Feed with Pneumatic roll lift. This ServoFeed is capable of 6" feed progressions at 250 SPM while 3" moves can be produced at 300 SPM.
