Coil Reels - High Speed Reels

High Speed Coil Reel

CAPACITY : 6,000 – 20,000 LBS.
MAX. WIDTHS : 60" & 72"
MAX. O.D. : 72"

Specifications

Models	Max. Weight	Max. Stock Width	Max. Coil O.D.	Expansion Range	Max. Speed (FPM)
BK-6D	6,000	18”	60”	17 – 21”	300 Std.
BK-10D	10,000	24”	72”	17 – 21”	300 Std.
BK-15D	15,000	24”	72”	17 – 21”	300 Std.
BK-20D	20,000	30”	72”	17 – 21”	300 Std.

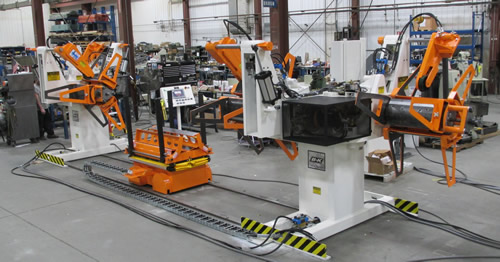

High speed double end coil reels with hydraulic expansion, material back plate and traveling base.

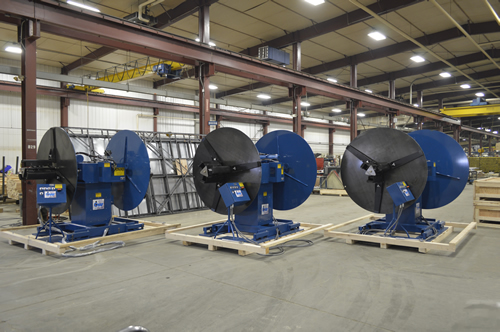

Double end uncoilers rated to handle 20,000 LB. coils.
