Upenders & Upender Buggies
Upenders & Upender Buggies |
|
|

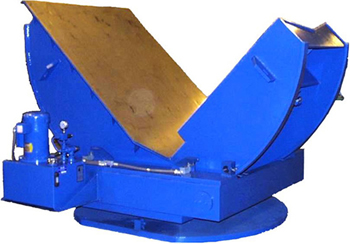

CWP Coil Upenders and Upender Buggies sometimes called Coil Tilters or Coil Positioners are designed to bring coils upright from their palletized position efficiently and safely. Coil Upenders or Coil Tippers not only simplify the dangerous process of tipping metal coils, but can be utilized to safely rotate paper rolls, plastic film, press dies, palletized product, cylinders or windmill turbines to change vertical/horizontal orientation. Mechanical Upenders are available with Electric or Hydraulic drive systems. Both are equipped with a heavy-duty brake to stop the load in any position. |

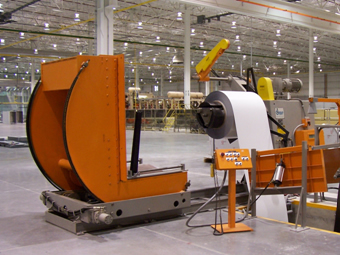

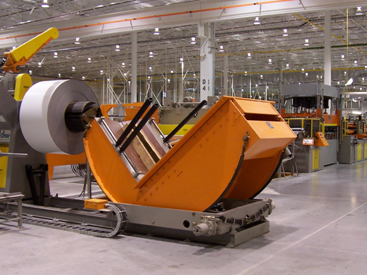

CWP Upender Buggy loads coils quickly

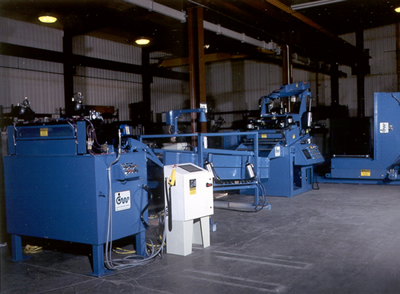

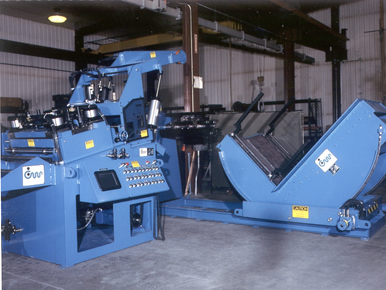

36" Press Feed System with coil loading Upender-Buggy
| Coil Upender Specifications | |
| Model | Weight Capacity |
| CU-10 | 10,000LBS. |
| CU-20 | 20,000LBS. |
| CU-30 | 30,000LBS. |
| CU-40 | 40,000LBS. |
| CU-50 | 50,000LBS |
| 180° coil rotation optional | |
| Upender Buggy Specifications | |
| Model | Weight Capacity |
| CUB-10 | 10,000LBS. |
| CUB-20 | 20,000LBS. |
| CUB-30 | 30,000LBS. |
| CUB-40 | 40,000LBS. |
| CUB-50 | 50,000LBS |
| Avail. with hydraulic or elec. drive | |
