Control Automation

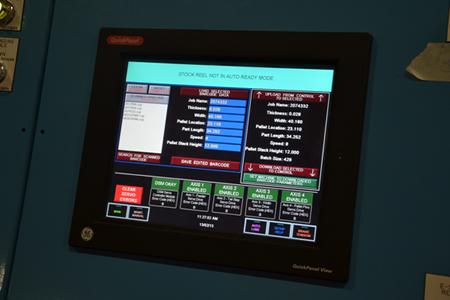

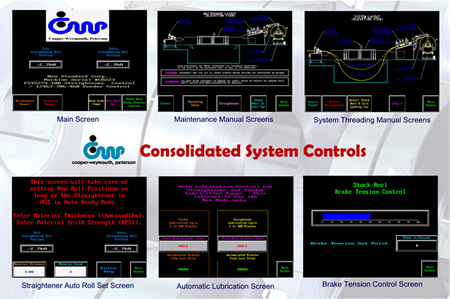

CWP provides a variety of high performance Coil Handling System (CHS) Control options, including user-friendly Total System Control (TSC) technology. The TSC graphic interface enables operators to automatically set the straightener or leveler rolls, feed passline height and uncoiler brake by preprogrammed job number stored at the touch screen interface of the servo feed control or select a job using the optional Bar code reader. Other features include 999-job memory; built-in Ethernet for real-time production monitoring, pictorial maintenance and thread-up screens. From our revolutionary, high performance ServoMax Servo Roll Feeds, to our intuitive touch screen controls- CWP technology gives you a competitive edge.

Coil Handling System (CHS) Automation package utilizing the CWP total system control

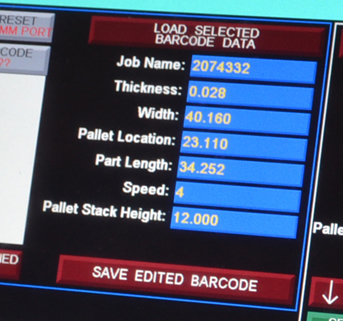

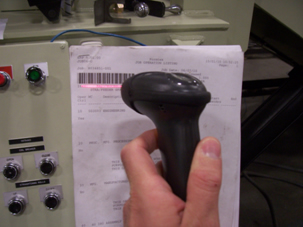

With The CWP Total System Control, an optional Bar Code reader can be used to scan the job paperwork or coil barcode and with this data automatically select the Coil Handling System job parameters in the control. Set-up of Press Feed Lines and Cut to length lines has never been easier.

A CWP Coil Handling System Designed for Automatic set-up from the scan of a bar code off a coil. Set-up of all job parameters including the Material Stacker and Stock Width Edge guides is automated.

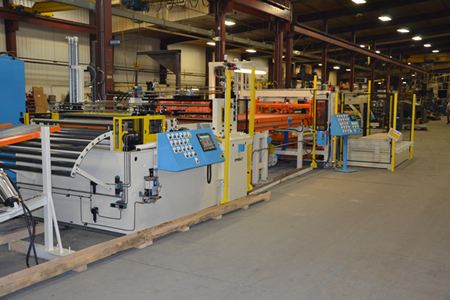

Cut to Length Line with Total System Control (TSC) allows automatic set-up of the stacker along with all required job parameters

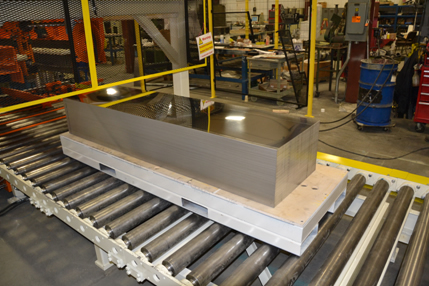

Stack of Blanks produced on a CWP Cut to Length coil feed line
